EdUHK HPC Architecture

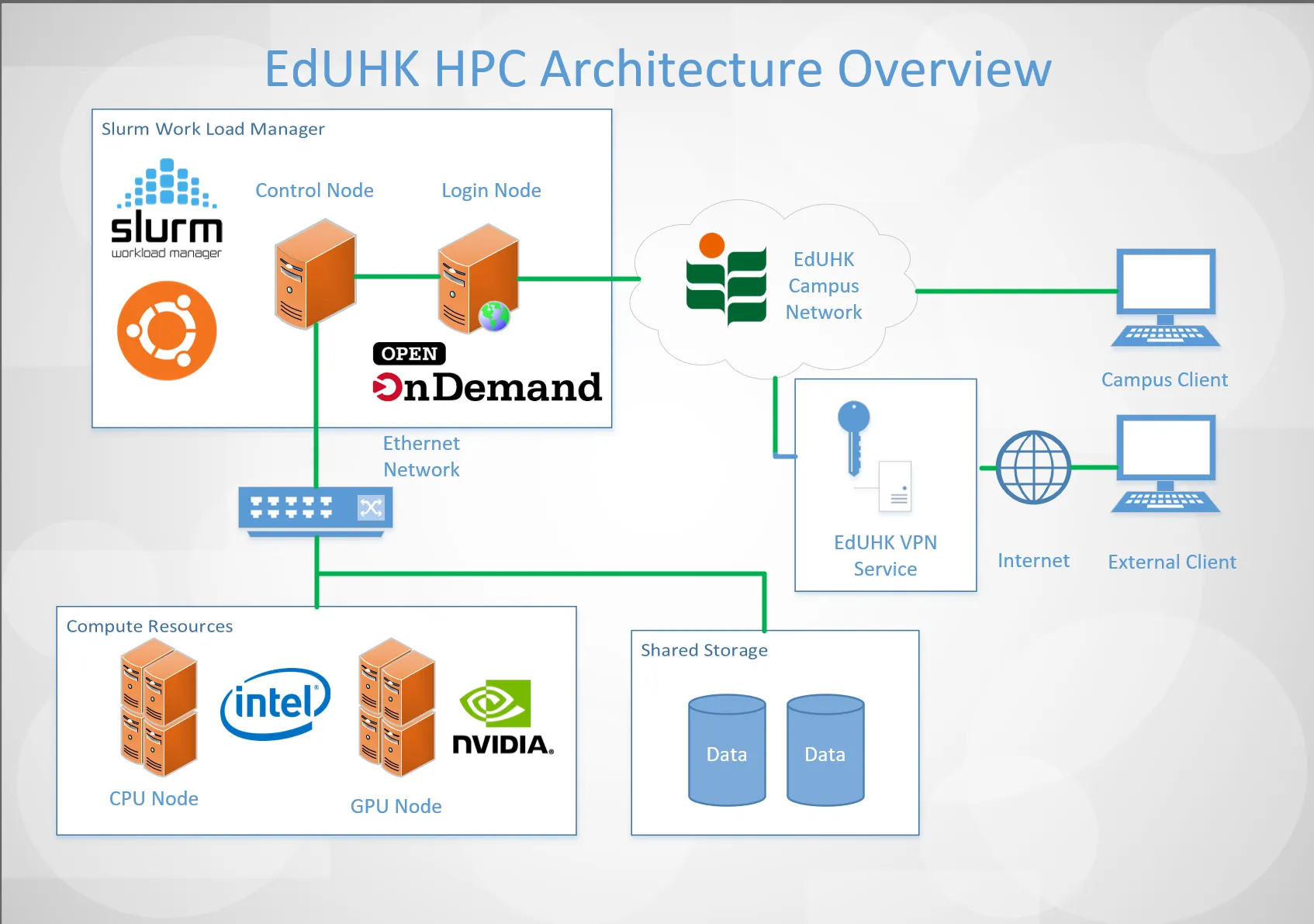

Architecture Overview

Section titled “Architecture Overview”

Architecture


HPC Hardware Architecture

Section titled “HPC Hardware Architecture”

Compute Node

    -> CPU: 560 Cores
    -> RAM: 7TB
    -> GPU
      16 x L40
      16x H20

Shared Storage
    -> Total Disk Size: 30TB
    -> Remarks
      Temporary Storage
      Pending Upgrade


HPC Network Architecture

Section titled “HPC Network Architecture”

Network Protocol

    -> Ethernet

Network Speed
    -> 1 Gbps (Login Node Internet)
    -> 10 Gbps (Intra Cluster)
    -> 10 Gbps (Storage)
